Gebruikershandleiding Nitto INVO High Performance Band

1. Product voorbijview

The Nitto INVO is an ultra-high performance tire engineered for exceptional performance, ride refinement, and quality. Its advanced tread pattern is designed to reduce road noise, enhance comfort, and provide superior traction in both dry and wet conditions. This tire combines state-of-the-art computer engineering with digital audio testing to deliver a unique and functional design.

Image 1.1: The Nitto INVO tire, showcasing its tread design and sidewall on a wheel.

2. Belangrijkste kenmerken

• Large Twin Circumferential Grooves: These grooves are designed to efficiently channel water away from the tire's contact patch, significantly improving wet weather traction and reducing the risk of hydroplaning.
• 3D Multi-Wave Sipes: These sipes enhance wet weather performance by cutting through water on the road surface, providing additional biting edges for improved grip and stability.
• Outer Large Reinforced Tread Blocks: These robust tread blocks ensure a consistent contact area with the road, optimizing dry performance, grip, and cornering stability.
• Sound Lap Test Tread Pattern: Developed through advanced digital audio testing, this unique tread pattern minimizes perceived road noise, contributing to a quieter and more comfortable ride.

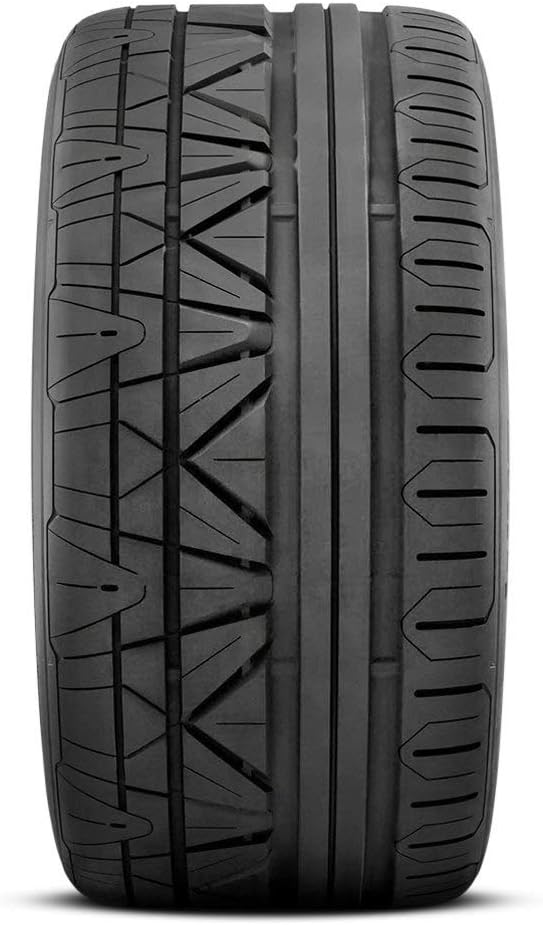

Afbeelding 2.1: Gedetailleerd view of the INVO's advanced tread design, showing the circumferential grooves and multi-wave sipes.

3. Installatie en installatie

Proper installation is crucial for the performance and longevity of your Nitto INVO tires. It is highly recommended that tire installation be performed by a certified professional using appropriate equipment and following industry standards.

3.1 Controles vóór installatie

• Verify that the tire size (305/30R19) and load index (102Z) match your vehicle's specifications as recommended by the vehicle manufacturer.
• Inspect the tire for any visible damage or defects prior to mounting.
• Ensure wheels are clean, free of rust, and compatible with the tire size.

3.2 Montage en balanceren

• Use proper lubrication on the tire beads and wheel rim during mounting to prevent damage.
• Inflate the tire to the vehicle manufacturer's recommended pressure, typically found on a placard inside the driver's side door jamb or in the owner's manual. Do not exceed the maximum pressure listed on the tire sidewall.
• Perform dynamic balancing of the tire and wheel assembly to ensure smooth operation and prevent premature wear.

3.3 Na-installatie

• After driving approximately 50-100 miles, have the lug nuts re-torqued to the vehicle manufacturer's specifications.
• Check tire pressure regularly, at least once a month and before long trips, using a reliable tire pressure gauge.

4. Bedrijfsrichtlijnen

Adhering to proper operating guidelines will maximize the performance, safety, and lifespan of your Nitto INVO tires.

4.1 Bandenspanning

Maintain correct tire inflation pressure as specified by your vehicle manufacturer. Under-inflation can lead to excessive heat buildup, reduced fuel efficiency, and irregular wear. Over-inflation can result in a harsher ride, reduced traction, and increased susceptibility to impact damage.

4.2 Rijomstandigheden

• Nat weer: The INVO tire is designed for excellent wet traction. However, always reduce speed and increase following distance in wet conditions to maintain control.
• Bochten nemen: The reinforced tread blocks provide enhanced cornering grip. Drive within safe limits and be aware of road conditions.
• Snelheid: Do not exceed the tire's speed rating (Z in 102Z) or the legal speed limit.

Image 4.1: Nitto INVO tires on a vehicle, demonstrating their high-performance application.

5. Onderhoud

Regular maintenance is essential for extending the life of your tires and ensuring optimal performance.

5.1 Banden wisselen

Rotate your tires every 5,000 to 7,500 miles, or as recommended by your vehicle manufacturer. This helps promote even tread wear across all four tires.

5.2 Wieluitlijning

Have your vehicle's wheel alignment checked periodically, especially if you notice uneven tire wear, steering pull, or after hitting a significant pothole. Proper alignment ensures tires wear evenly and the vehicle handles correctly.

5.3 Inspectie van de profieldiepte

Regularly inspect tread depth using a tread depth gauge. The INVO tire features tread wear indicators (small bars molded into the tread grooves). When the tread wears down to these bars, it indicates that the tire has reached its minimum safe tread depth (typically 2/32 inch) and should be replaced.

5.4 Reinigen

Clean tires with mild soap and water. Avoid harsh chemicals or petroleum-based products that can degrade the rubber.

6. Probleemoplossing

In dit gedeelte worden veelvoorkomende problemen met uw banden besproken.

If you experience any persistent issues or concerns, it is recommended to consult with a qualified tire professional.

7. Specificaties

8. Garantie en ondersteuning

For specific warranty information regarding your Nitto INVO tires, please refer to the official Nitto Tire warranty documentation provided at the time of purchase or visit the official Nitto Tire website. Warranty terms typically cover manufacturing defects for a specified period or mileage.

For technical support, product inquiries, or assistance with warranty claims, please contact Nitto Tire customer service or an authorized Nitto Tire dealer.

Officieel Webwebsite: www.nittotire.com
